GB/T 24590 Enhanced Alloy Seamless Tubes for Efficient Heat Exchanger
The GB/T 24590 standard specifies the requirements for enhanced alloy seamless tubes designed for use in efficient heat exchangers. These tubes are engineered to withstand high temperatures and pressures, making them ideal for demanding industrial applications. This article explores the material specifications, key features, chemical composition, mechanical properties, steel grades, applications, and possible alternative grades of these seamless tubes.
Material Specification
GB/T 24590 seamless tubes are manufactured from high-quality alloy steels. These materials are selected for their excellent thermal conductivity, corrosion resistance, and mechanical strength, ensuring optimal performance in heat exchanger applications.
Key Features
- High Thermal Conductivity: Ensures efficient heat transfer.
- Corrosion Resistance: Suitable for use in corrosive environments.
- Mechanical Strength: Capable of withstanding high pressures and temperatures.
- Durability: Long service life with minimal maintenance requirements.
- Versatility: Applicable in various industrial sectors, including chemical, petrochemical, and power generation.
Chemical Composition
The chemical composition of GB/T 24590 seamless tubes is critical to their performance. Below is a typical composition table:
| Element | Composition (%) |
| Carbon (C) | 0.05 - 0.15 |
| Silicon (Si) | 0.20 - 0.50 |
| Manganese (Mn) | 0.30 - 0.80 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 0.50 - 1.20 |
| Nickel (Ni) | 0.30 - 0.80 |
| Molybdenum (Mo) | 0.15 - 0.30 |
Mechanical Properties
The mechanical properties of these tubes ensure they can handle the rigorous demands of heat exchanger applications. Below is a table of typical mechanical properties:
| Property | Value |
| Tensile Strength | 450 - 650 MPa |
| Yield Strength | ≥ 240 MPa |
| Elongation | ≥ 20% |
| Hardness | ≤ 200 HB |
Steel Grade
The GB/T 24590 standard includes various steel grades, each tailored for specific applications. Common grades include:
- Grade 1: General-purpose applications with moderate temperature and pressure requirements.
- Grade 2: Enhanced corrosion resistance for more demanding environments.
- Grade 3: High-temperature applications with superior mechanical properties.
Application
GB/T 24590 seamless tubes are widely used in:
- Chemical Processing: For efficient heat transfer in reactors and condensers.
- Petrochemical Industry: In refineries and gas processing plants.
- Power Generation: In boilers and heat recovery steam generators.
- Oil and Gas: For offshore and onshore applications requiring robust performance.
Possible Alternative Grades
While GB/T 24590 tubes are highly effective, alternative grades may be considered based on specific requirements:
- ASTM A213: Suitable for high-temperature service.
- EN 10216-2: Offers similar mechanical properties with different chemical compositions.
- JIS G3462: Japanese standard for alloy steel tubes used in boilers and heat exchangers.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|

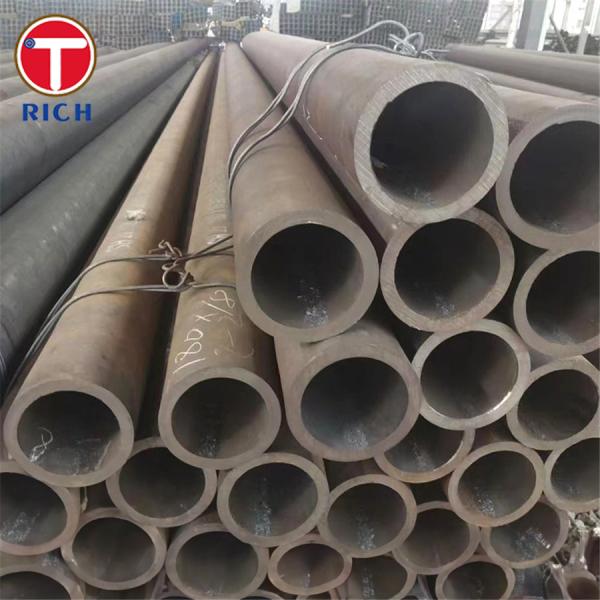

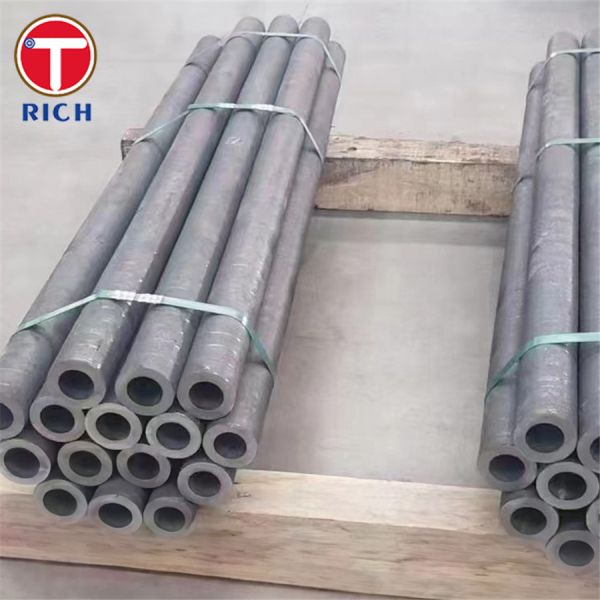

GB/T 24590 Enhanced Alloy seamless Tubes For Efficient Heat Exchanger Images
|
